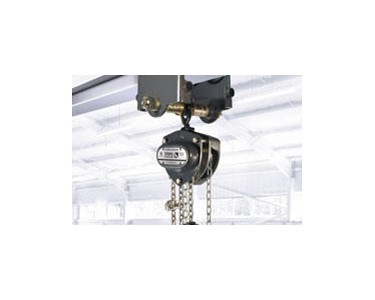

A robust manual chain hoist designed for professional lifting applications in confined or demanding environments, the SHK offers reliable operation without the need for a power supply.

Compact, robust, and reliable manual lifting with capacities up to 20,000 kg—no power supply needed.

The manual chain hoist is engineered for use in various lifting scenarios where a compact and robust solution is required. Its design ensures ergonomic, simple operation and high reliability, making it suitable for professional use in restricted spaces.

Features & Benefits

Supports safe working loads (S.W.L.) from 250 kg up to 20,000 kg.
Steel gear casing and handwheel cover for enhanced durability.
Powder coating (RAL 7021); 70 µm film thickness for SHK, 180 µm for SHK+ (offshore-grade).
High-tensile steel alloy load chain, with a hot-dip galvanised finish; stainless steel chain available as an option.
Milled chain sprocket and gearwheels for powerful and smooth operation.
Overload protection via slipping clutch (on SHK+).
Weston-type brake system with double ratchet, two friction discs, and four brake surfaces.
Available as an explosion-protected variant (SHKex) for hazardous areas.
Flexible mounting: can be attached with suspension hooks or various trolleys, achieving the lowest headroom in combination with the SIHK trolley.
Optional special coating for offshore and rugged environments (SHK+ model).

Specifications

Model	Capacity Range	Finish/Protection	Mounting Options
SHK	250 kg – 5,000 kg	Powder coating, 70 µm film	Suspension hook, Trolley
SHK+	500 kg – 20,000 kg	Powder coating, 180 µm film (offshore), Ball bearing chain sprocket	Suspension hook, Trolley, Offshore
SHKex	Explosion-protected applications	Explosion protection	Suspension hook, Trolley

To contact SLS Cranes about Manual Chain Hoist use Get a quote.

Features & Benefits

Supports safe working loads (S.W.L.) from 250 kg up to 20,000 kg.
Steel gear casing and handwheel cover for enhanced durability.
Powder coating (RAL 7021); 70 µm film thickness for SHK, 180 µm for SHK+ (offshore-grade).
High-tensile steel alloy load chain, with a hot-dip galvanised finish; stainless steel chain available as an option.
Milled chain sprocket and gearwheels for powerful and smooth operation.
Overload protection via slipping clutch (on SHK+).
Weston-type brake system with double ratchet, two friction discs, and four brake surfaces.
Available as an explosion-protected variant (SHKex) for hazardous areas.
Flexible mounting: can be attached with suspension hooks or various trolleys, achieving the lowest headroom in combination with the SIHK trolley.
Optional special coating for offshore and rugged environments (SHK+ model).

Specifications

Model	Capacity Range	Finish/Protection	Mounting Options
SHK	250 kg – 5,000 kg	Powder coating, 70 µm film	Suspension hook, Trolley
SHK+	500 kg – 20,000 kg	Powder coating, 180 µm film (offshore), Ball bearing chain sprocket	Suspension hook, Trolley, Offshore
SHKex	Explosion-protected applications	Explosion protection	Suspension hook, Trolley

Read less...

To contact SLS Cranes about Manual Chain Hoist use Get a quote.
