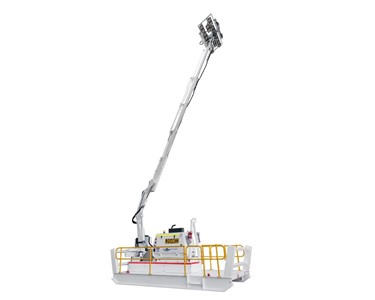

LED Skid Lighting Tower | 12HKP3000 LDS Pit Master Get latest price

Read more...

To contact Southern Cross Group about LED Skid Lighting Tower | 12HKP3000 LDS Pit Master use Get a quote.

ABOUT PIT MASTER OEM

The world’s leading manufacturer of the most powerful Extra Low Voltage LED Lighting Towers available and the only manufacturer that provides a full range of LED Lighting Towers for all applications within the Mining, Industrial and Construction sectors.

The in-house research and development of the Pit Master LED extra low voltage lighting technology and the use of a smaller engine size has been combined to deliver the Pit Master LED Lighting Tower, bringing many demonstrated operational advantages to the end user, including higher levels of safety, reduced fuel burn, lower maintenance costs and increased utilisation levels.

ABOUT OUR LED LIGHTING TOWERS

The Pit Master LED Lighting Towers have undergone rigorous on-ground testing and have been proven to have comparable lighting output to existing metal halide units currently being used within the construction, mining and industrial sectors.  Our manufacturing program follows a continuous improvement and development philosophy, while adopting stringent quality processes to ensure that the Pit Master LED Lighting towers comply with all requirements under the Motor Vehicle Standards Act 1989, OH&S Act 2000, OH&S Regulation 2001 NSW and the Coal Mining Health and Safety Act 1999.

Additional compliances that are included as “Standard issue” on all but the entry towers include:

• MDG15 Compliance– Mobile and transportable equipment for use in mines.
• AS-4242:1994 Compliance– For use in mines / Electrical wiring systems at extra low voltage.
• MDG41 Compliance– Guideline for fluid power system safety at mines December 2010.
• 1 Compliance– Safety of Machinery 2006.
• 1202 Compliance– General principles / technical principles clause 3.
• Mine Site Compliance– Light vehicles and ancillary equipment

Standard Inclusions:

• Controls Electronic Controller – Auto Start/Stop
• Engine Protection Fail Safe Shutdown – Temp, Oil and Water
• Radiator Mine Safe Radiator Cap
• Battery Isolation Single Pole with Lockout
• Start Isolation Single Pole with Lockout
• MDG15 Electrical Comp As per Regulated Standards
• MDG41 Hydraulic As per Regulated Standards
• E-Stop Standard
• Chassis/Sub Frame Hot Dipped Galvanised
• Fuel Tank Double Bunded
• Fire Extinguisher 4.5kg Standard Fitment
• Oil Recovery Oil Evacuation Kit
• Fuel Recovery Fuel Evacuation Tap
• Jump Start Cat or Anderson Plug
• Service Upgrades 500hr Water Separator/Filter & Sump

Technical Data:

• Lights 12 x Pit Master Heavy-Duty PM210
• Light Output 540,000 Lumens (3600W)
• Tower Voltage 48V DC
• Alternator 4 Pole Direct Drive
• Engine Kubota Z482
• Fuel Tank Capacity 215L
• Fuel Tank Hours 268hrs
• Boom Rotation Electric Rotation 340 degrees, 100% ground coverage
• Boom Hydraulic Lift/Extension

Measurements:

• Height – 2,810 mm
• Length – 5,060 mm
• Width – 2,080mm
• Mast Extended Height – 10.0Mtr
• Weight (Tare) – 4,400kg
