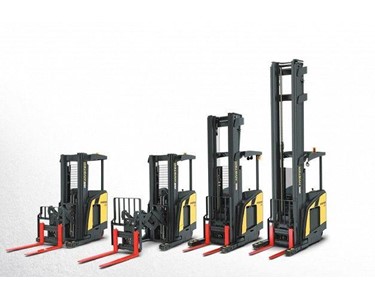

Hyster Reach Trucks 1,500 - 1,800kg | ...
There are three main variations of reach trucks:
Single Reach Trucks
Single reach trucks are specifically designed to operate in narrow aisle warehouse spaces.
They are able to reach and pick-up / set down pallets within racking thanks to the two outer legs that distribute the load weight.
Double Deep / Pantographic Reach Trucks
Double deep sometimes known as pantographic reach trucks have the similar manoeuvrability and narrow aisle operating design as single reach trucks however the carriage is fitted with a pantograph that allows the tynes to reach further into pallet racking to retrieve pallets that are being stored double deep.
Stand up Reach Trucks
Reach trucks are commonly engineered as sit down models, however in some specific applications such as order picking a stand up models is optimal.
In these models the operator stands whilst operating allowing them to easily enter and exit the machine as they work.
Advantages of Hyster Reach Trucks
Low Cost of Operation
The superior design of Hyster® reach trucks helps to lower your cost of ownership and increase productivity. Extended maintenance intervals, longer brake and tire life, all play a part in lowering the overall operating costs.
Built for Comfort
The operator compartment is a truly flexible operator compartment. Available in standard side stance or optional fore/aft stance configuration we have a truck for your application. The ability to assume variable positions within the operator compartment offers a comfortable and natural operating experience.
Enhanced Productivity
Powered lowering increases operator productivity by “powering” the load down when unloaded, maximizing lowering speeds (available on the N/ZR 2 and ZDR 2). Also, regenerative lowering helps reduce heat buildup in the hydraulic system and returns potential energy of the load to the battery to help increase battery shift life (available on the N/ZR 2 and ZDR 2).
AC Technology delivers quick and smooth changes in travel direction and offers precise speed control with excellent acceleration thereby significantly increasing productivity potential.
Advanced Technology
Hyster® i3 Technology™ integrates commonality among Hyster warehouse products and simplifies the way in which operators and technicians alike handle and service the truck. This technology allows operator input to optimize performance to suit operator skill level. It also provides setup and diagnostic menus for service technicians.
AC Technology delivers quick and smooth changes in travel direction and offers precise speed control with excellent acceleration. The standard “Extended Shift” feature allows enhanced run time without recharging over longer periods. The “Extended Shift” AC controller setting provides the optimum balance between performance needs and battery shift life. AC Technology features an Auto Deceleration System that, when activated, electronically decelerates the truck to a smooth stop when the operator moves the control handle towards neutral.
Hyster Reach Trucks MHE Solutions for all Industries
Specifications
N35ZRS3 |
N30ZDRS3 |
N35ZDR3th |
N30ZDR3 |
N45ZR3 |
N40ZRS3 |
N35ZR3 |
N40ZR3 |
|
Load Capacity (kg) |
1,500 |
1,300 |
1,500 |
1,300 |
2,000 |
1,800 |
1,500 |
1,800 |
Maximum Lift Height (mm) |
6,909 |
6,909 |
11,278 |
11,278 |
11,278 |
6,909 |
11,278 |
11,278 |
Battery Capacity |
24-36V / 775-1395Ah |
24-36V / 775-1395Ah |
36V / 775-1240Ah |
36V / 775-1240Ah |
36V / 775-1240Ah |
24-36V / 775-1395Ah |
36V / 775-1240Ah |
36V / 775-1240Ah |
To contact Adaptalift Group about Hyster Reach Trucks 1,500 - 1,800kg | N30-40 Series use Get a quote.
There are three main variations of reach trucks:
Single Reach Trucks
Single reach trucks are specifically designed to operate in narrow aisle warehouse spaces.
They are able to reach and pick-up / set down pallets within racking thanks to the two outer legs that distribute the load weight.
Double Deep / Pantographic Reach Trucks
Double deep sometimes known as pantographic reach trucks have the similar manoeuvrability and narrow aisle operating design as single reach trucks however the carriage is fitted with a pantograph that allows the tynes to reach further into pallet racking to retrieve pallets that are being stored double deep.
Stand up Reach Trucks
Reach trucks are commonly engineered as sit down models, however in some specific applications such as order picking a stand up models is optimal.
In these models the operator stands whilst operating allowing them to easily enter and exit the machine as they work.
Advantages of Hyster Reach Trucks
Low Cost of Operation
The superior design of Hyster® reach trucks helps to lower your cost of ownership and increase productivity. Extended maintenance intervals, longer brake and tire life, all play a part in lowering the overall operating costs.
Built for Comfort
The operator compartment is a truly flexible operator compartment. Available in standard side stance or optional fore/aft stance configuration we have a truck for your application. The ability to assume variable positions within the operator compartment offers a comfortable and natural operating experience.
Enhanced Productivity
Powered lowering increases operator productivity by “powering” the load down when unloaded, maximizing lowering speeds (available on the N/ZR 2 and ZDR 2). Also, regenerative lowering helps reduce heat buildup in the hydraulic system and returns potential energy of the load to the battery to help increase battery shift life (available on the N/ZR 2 and ZDR 2).
AC Technology delivers quick and smooth changes in travel direction and offers precise speed control with excellent acceleration thereby significantly increasing productivity potential.
Advanced Technology
Hyster® i3 Technology™ integrates commonality among Hyster warehouse products and simplifies the way in which operators and technicians alike handle and service the truck. This technology allows operator input to optimize performance to suit operator skill level. It also provides setup and diagnostic menus for service technicians.
AC Technology delivers quick and smooth changes in travel direction and offers precise speed control with excellent acceleration. The standard “Extended Shift” feature allows enhanced run time without recharging over longer periods. The “Extended Shift” AC controller setting provides the optimum balance between performance needs and battery shift life. AC Technology features an Auto Deceleration System that, when activated, electronically decelerates the truck to a smooth stop when the operator moves the control handle towards neutral.
Hyster Reach Trucks MHE Solutions for all Industries
Specifications
N35ZRS3 |
N30ZDRS3 |
N35ZDR3th |
N30ZDR3 |
N45ZR3 |
N40ZRS3 |
N35ZR3 |
N40ZR3 |
|
Load Capacity (kg) |
1,500 |
1,300 |
1,500 |
1,300 |
2,000 |
1,800 |
1,500 |
1,800 |
Maximum Lift Height (mm) |
6,909 |
6,909 |
11,278 |
11,278 |
11,278 |
6,909 |
11,278 |
11,278 |
Battery Capacity |
24-36V / 775-1395Ah |
24-36V / 775-1395Ah |
36V / 775-1240Ah |
36V / 775-1240Ah |
36V / 775-1240Ah |
24-36V / 775-1395Ah |
36V / 775-1240Ah |
36V / 775-1240Ah |
To contact Adaptalift Group about Hyster Reach Trucks 1,500 - 1,800kg | N30-40 Series use Get a quote.
