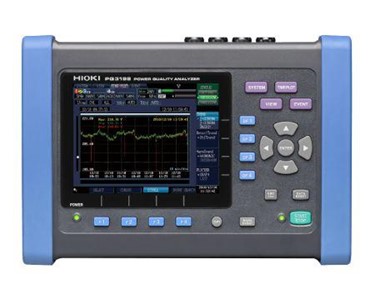

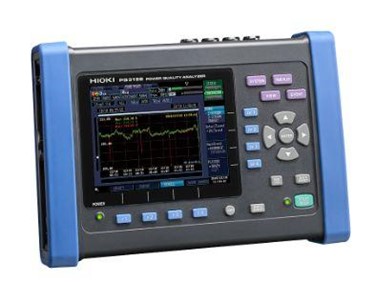

Power Quality Analyzer PQ3198

Investigate Power Characteristics and Analyze the Causes of Problems

Receive 1-3 days from order

Hioki portable power meters and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The new and improved PQ3198 is a power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. New features include the ability to drive current sensors straight from the PQA and enhanced recording capabilities.

Key Features

Verify power problems in accordance with the IEC61000-4-30 Edition 3 Class A standard
High accuracy and continuous gapless recording
(V: ±0.1% of nominal voltage, A: ±0.1% rdg. ±0.1% f.s., W: ±0.2% rdg. ±0.1% f.s.)
Broadband voltage range lets you measure even high-order harmonic (supraharmonic) components of up to 80 kHz
Maximum 6000 V peak transient voltage up to 700 kHz
Measure up to 6000 A AC
Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency
Easily create reports with bundled PQ ONE application software
Optional GPS BOX for synchronizing multiple devices

Model No. (Order Code)

PQ3198 Main unit, current sensor is sold separately

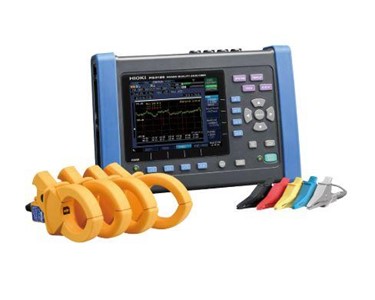

PQ3198-92 Kit includes 600 A sensor × 4 and other options
PQ3198-94 Kit includes 6000 A sensor × 4 and other options

Note: An optional current sensor is necessary to measure current or power parameters. Select from Value Kits for added savings.

To contact NWI Group about Hioki Power Quality Analyzer PQ3198 use Get a quote.

Key Features

Verify power problems in accordance with the IEC61000-4-30 Edition 3 Class A standard
High accuracy and continuous gapless recording
(V: ±0.1% of nominal voltage, A: ±0.1% rdg. ±0.1% f.s., W: ±0.2% rdg. ±0.1% f.s.)
Broadband voltage range lets you measure even high-order harmonic (supraharmonic) components of up to 80 kHz
Maximum 6000 V peak transient voltage up to 700 kHz
Measure up to 6000 A AC
Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency
Easily create reports with bundled PQ ONE application software
Optional GPS BOX for synchronizing multiple devices

Model No. (Order Code)

PQ3198 Main unit, current sensor is sold separately
PQ3198-92 Kit includes 600 A sensor × 4 and other options
PQ3198-94 Kit includes 6000 A sensor × 4 and other options

Note: An optional current sensor is necessary to measure current or power parameters. Select from Value Kits for added savings.
