Hioki Power Quality Analyzer PQ3100

Hioki - Power Quality Analyzer PQ3100

Supplier: NWI Group

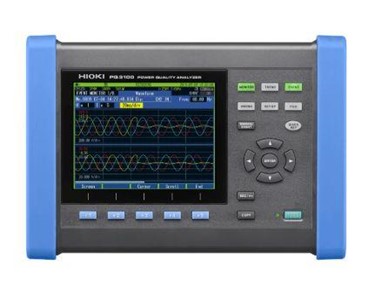

Power Quality Analyzer PQ3100

3-Phase 4-Wire Power Quality Analyzer Compliant to IEC61000-4-30 Class S Standards and On-screen Guide to Deliver Easy Setup and Testing

Receive 1-3 days from order

Hioki portable power meters and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PQ3100 is a comprehensive but easy-to-use power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues.

How to Use Power Quality Analyzers: Recording the Power Quality of a Power Grid

The Hioki PQ3100 Power Quality Analyzer measures all power parameters including voltage, current, power, harmonics, and flicker simultaneously along the same time axis, giving it the ability to capture all power anomalies such as intermittent power interruptions, voltage drops and frequency fluctuations while recording the power trend.

Key Features

Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis
Measure up to 6000 A AC
Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
Quick Set: Easy-to-understand on-screen guide for measurement procedures
Bundled PQ ONE application software makes it easy to create reports
Record waveforms for up to 1 second before and 10 seconds after an anomaly occurs
Accurately measure DC currents over extended periods of time (with an AC/DC auto-zero current sensor)
Directly supply power to connected current sensors
Send measured values to Hioki data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products), Ver. 2.0 and later

Model No. (Order Code)

PQ3100 Main unit, current sensor is sold separately

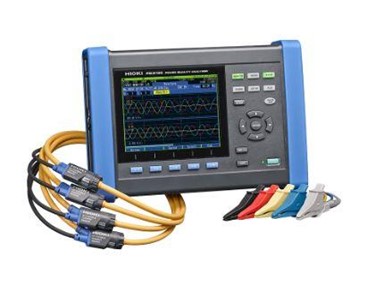

PQ3100-91 Kit includes 600 A sensor × 2 and other options
PQ3100-92 Kit includes 600 A sensor × 4 and other options
PQ3100-94 Kit includes 6000 A sensor × 4 and other options

Note: An optional current sensor is necessary to measure current or power parameters. Select from Value Kits for added savings.

To contact NWI Group about Hioki Power Quality Analyzer PQ3100 use Get a quote.

How to Use Power Quality Analyzers: Recording the Power Quality of a Power Grid

Key Features

Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis
Measure up to 6000 A AC
Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
Quick Set: Easy-to-understand on-screen guide for measurement procedures
Bundled PQ ONE application software makes it easy to create reports
Record waveforms for up to 1 second before and 10 seconds after an anomaly occurs
Accurately measure DC currents over extended periods of time (with an AC/DC auto-zero current sensor)
Directly supply power to connected current sensors
Send measured values to Hioki data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products), Ver. 2.0 and later

Model No. (Order Code)

PQ3100 Main unit, current sensor is sold separately
PQ3100-91 Kit includes 600 A sensor × 2 and other options
PQ3100-92 Kit includes 600 A sensor × 4 and other options
PQ3100-94 Kit includes 6000 A sensor × 4 and other options

Note: An optional current sensor is necessary to measure current or power parameters. Select from Value Kits for added savings.

Read less...

To contact NWI Group about Hioki Power Quality Analyzer PQ3100 use Get a quote.
