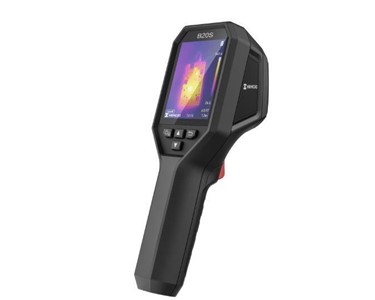

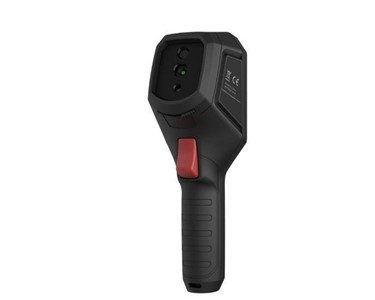

The HIKMICRO B20S is a professional-grade infrared thermal imaging camera engineered for electrical, mechanical, building, and HVAC diagnostics. Offering crisp thermal images, a wide temperature measurement range, and integrated visual imaging, the B20S is designed to identify faults, prevent downtime, and enhance safety across industrial and commercial applications.

Compact, rugged, and easy to use, the B20S combines high thermal sensitivity, smart features, and robust construction in a handheld design. Whether detecting heat loss, overloaded circuits, or mechanical friction, this camera delivers reliable insights with speed and precision.

Key Features

• High-resolution 256 × 192 thermal sensor (49,152 pixels) with SuperIR enhancement to 640 × 480 (307,200 pixels)
• Thermal sensitivity (NETD): < 40 mK @ 25°C
• Temperature measurement range: -20°C to +550°C with ±2°C or ±2% accuracy
• Integrated 2 MP optical camera for visual and fusion imaging
• Image modes: Thermal, Visual, Fusion, PIP
• 3.2” LCD touchscreen display (640 × 480 resolution)
• Voice and text annotations for enhanced reporting
• Professional analysis tools: multiple spots, area boxes, isotherms
• Rugged IP54-rated housing, drop-tested to 2 m
• Battery life: up to 6 hours continuous operation, USB-C fast charging
• Storage: 16 GB internal memory (up to 35,000 images)
• Connectivity: Wi-Fi for mobile app sharing, HIKMICRO Analyzer software support

Applications

• Electrical inspections: Loose connections, overloaded circuits, phase imbalances
• Mechanical diagnostics: Bearings, pumps, motors, gearboxes
• Building inspections: Insulation faults, air leaks, water intrusion
• HVAC & plumbing: Duct leaks, pipe blockages, system performance
• Preventive maintenance: Hotspot detection to reduce downtime and failures

Benefits

• High-quality thermal imaging at a competitive price point
• Compact, lightweight, and field-ready design
• Precise diagnostics with advanced measurement tools
• Seamless connectivity for reporting and data transfer
• Built to withstand demanding industrial environments

Technical Specifications

Thermal Resolution: 256 × 192 pixels (SuperIR: 640 × 480)

NETD: < 40 mK (@25°C, F#1.0)

Temperature Range: -20°C to +550°C

Accuracy: ±2°C or ±2% of reading

Frame Rate: 25 Hz

Field of View: 50° × 37.2°

Minimum Focus Distance: 0.3 m (thermal), 0.5 m (visual)

Display: 3.2” LCD touchscreen (640 × 480)

Storage: 16 GB internal memory (35,000 images)

Battery Life: Approx. 6 hours, USB-C fast charging

Protection Rating: IP54, 2 m drop-tested

Weight: ~380 g

Dimensions: 221.7 × 73.5 × 123.8 mm

Why Choose the HIKMICRO B20S?

The HIKMICRO B20S delivers powerful thermal imaging performance in a durable, portable package. Trusted by electricians, inspectors, and maintenance professionals, it provides the clarity, accuracy, and reliability needed to make fast, informed decisions in the field.
