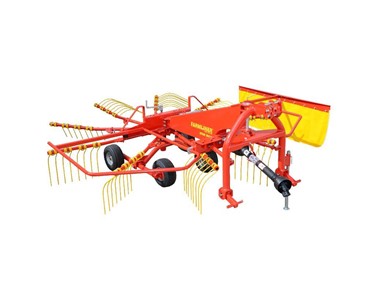

Farmliner Farm Machinery 405Kg | Star 370-9 Rotary Rake Get latest price

Read more...

To contact Inlon about Farmliner Farm Machinery 405Kg | Star 370-9 Rotary Rake use Get a quote.

FEATURES OF THE STAR 370-9 ROTARY RAKES

• PTO drive shaft with torque limiter
• Closed cam track gearbox in oil bath
• 9 arm/36 tine rake rotor
• Removable arms for road transport
• Transport locking system for safety
• Curtain with adjustable position
• Tandem wheels on walking beam for better ground contours
• Pivoting headstock allows raking while turning (optional)

HEADSTOCK

• Hitch - Pivoting headstock allows the rake to follow the tractor more easily and continue raking while turning.
• Stabiliser - The stabiliser dampens machine shake while raking.
• Stabilisers hold the rake rigidly when raised for transport.
• PTO shaft with torque limiter.
• Floating arms - Category 1 and 2 lower linkage arms are floating to allow tractor/rake coupling to better follow ground contours.

GROUND CONDITIONS

• Walking Tandem Axle - tandem axle system enables less rotor oscillation when crossing bumps and contours. By maintaining accurate tine height above ground contours, the STAR rake gives faster, cleaner raking reducing ground contact or leaving crop behind.

RAKING ARMS

• Height adjustable spring tines.
• Achieve high quality fodder with properly set and adjustable tines.
• Stepless height adjustment with crank handle.
• Tine arm angle is controlled with a bearing follower in a cam track.
• Detachable outer tine arm for rake transport.

SWATH ADJUSTMENT

• Working width adjustment
• The swath width is adjusted by the position of the curtain. The rotary rake offer a wide range of swath width to suit the pickup width of the baler or forage wagon.

TRANSPORT

• The rake is ready for storage with all tine arms stowed in the transport position and the side curtain easily folded with spring assist.

OPTIONS

• Optional pivoting headstock top pin for raking of undulating fields.

WARRANTY

• Star 370-9 rotary rake have a 1 year factory warranty for peace of mind.
