Standard Angle Beam Transducers 0.5 MHz and 1.0 MHz

Standard angle beam transducers are large single element transducers used with a wedge to introduce a refracted shear wave or longitudinal wave into a test piece.

Receive 1-3 days from order

Advantages

Large element size allows for inspection of thicker components and provides a large scanning index
Transducers available in Accuscan-S, Centrascan, and Videoscan Series
Accupath and High Temperature style wedges available
Threaded brass screw receptacles ensure firm anchoring of the transducer onto the wedge
Available in frequencies as low as 0.5 MHz and 1.0 MHz
Captive screws included with the transducer

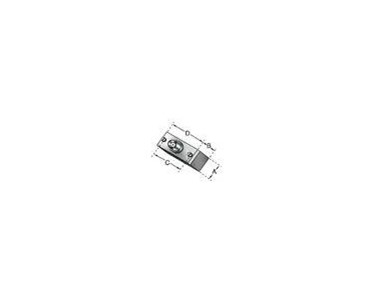

Transducer Dimensions (in inches)

Nominal Element Size	(A)	(B)	(C)	(D)
1.00	1.25	0.63	1.38	1.65
0.50 x 1.00	0.73	0.63	1.31	1.53
0.50	0.72	0.63	0.81	1.02

Frequency	Nominal Element Size		ACCUSCAN-S	CENTRASCA	VIDEOSCAN
(MHz)	in.	mm	Part / Item No.	Part / Item No.	Part / Item No.
0.5	0.50 x 1.00	13 x 25	A413S-SB\U8431012	-	V413-SB\U8436010
0.5	1	25	A414S-SB\U8431013	-	V414-SB \U8436011
1	0.50 x 1.00	13 x 25	A401S-SB\U8431001	C401-SB\U8435001	V401-SB\U8436001
1	0.5	6	A402S-SB\U8431002	-	V402-SB\U8436002
1	1	25	A407S-SB\U8431007	-	V407-SB\U8436007
2.25	0.50 x 1.00	13 x 25	A403S-SB\U8431003	C403-SB\U8435003	V403-SB\U8436003
2.25	0.5	13	A404S-SB\U8431004	C404-SB\U8435004	V404-SB\U8436004
2.25	1	25	A408S-SB\U8431008	-	V408-SB\U8436008
3.5	0.50 x 1.00	13 x 25	A412S-SB\U8431011	C412-SB\U8435011	-
3.5	0.5	13	A415S-SB\U8431014	C415-SB\U8435012	-
5	0.50 x 1.00	13 x 25	A405S-SB\U8431005	C405-SB\U8435005	V405-SB\U8436005
5	0.5	13	A406S-SB\U8431006	C406-SB\U8435006	-
5	1	25	A409S-SB\U8431009	-	V409-SB\U8436009

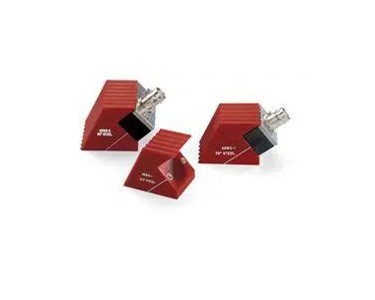

Standard Angle Beam Wedges

Nominal Element Size		Wedge Part Numbers
inches	mm	Accupath*	High Temp* 500°F (260°C)	Very High Temp* 900°F (480°C)	Surface Wave 90°
1.00	25	ABWS-3-X°	ABWHT-3-X°	ABWVHT-3-X°	ABWSL-3-90°
0.50 x 1.00	13 x 25	ABWS-2-X°	ABWHT-2-X°	ABWVHT-2-X°	ABWSL-2-90°
0.50 x 1.00	13 x 25	ABWS-2-X°	ABWHT-2-X°	ABWVHT-2-X°	ABWSL-2-90°
0.50	13	ABWS-1-X°	ABWHT-1-X°	ABWVHT-1-X°	ABWSL-1-90°

*Wedges are available in standard refracted shear wave angles of 30°, 45°, 60°, and 70° in steel at 5.0 MHz.

Accupath and Surface Wave Wedge Dimensions (Standard)

Nominal Element Size (in inches) = 1.00

(A)	(B)	(C)	(D)
30°	1.69	2.15	1.62	1.15
45°	1.47	1.96	1.63	0.97
60°	1.50	2.18	1.63	1.00
70°	1.50	2.47	1.63	1.13
90°	1.50	2.50	1.65	0.44

Nominal Element Size (in inches) = 0.50 x 1.00

(A)	(B)	(C)	(D)
30°	1.30	1.30	1.60	0.76
45°	1.30	1.41	1.60	0.67
60°	1.30	1.50	1.60	0.67
70°	1.35	1.77	1.60	0.85
90°	1.20	1.34	1.60	-

Nominal Element Size (in inches) = 0.50

(A)	(B)	(C)	(D)
30°	1.20	1.42	1.10	0.83
45°	1.20	1.31	1.08	0.70
60°	1.20	1.48	1.08	0.70
70°	1.20	1.58	1.09	0.68
90°	1.20	1.34	1.00	-

Shear Wave Wedges for Aluminum

Compatible with our Miniature Screw-In and Standard Angle Beam transducers

Transducer
Case

Nominal
Element Size

Wedge Part Numbers

inches	mm	30°	45°	60°	70°	90°
Screw-In	0.50	13	ABWM-5053T	ABWM-5027T	ABWM-5028T	ABWM-5029T	ABWML-5041T
0.375	10	ABWM-7024T	ABWM-7025T	ABWM-7026T	ABWM-7027T	ABWML-7028T
0.25	6	ABWM-4086T	ABWM-4087T	ABWM-4088T	ABWM-4089T	ABWML-4074T
Standard	1.00	25	ABWS-3028	ABWS-3016	ABWS-3029	ABWS-3030	ABWSL-3039
0.50 x 1.00	13 x 25	ABWS-2021	ABWS-2022	ABWS-2023	ABWS-2024	ABWSL-2056
0.50	13	ABWS-1033	ABWS-1034	ABWS-1035	ABWS-1036	ABWSL-1045

Contoured Wedges

Improves coupling on curved surfaces
When ordering, please specify wedge type, contour orientation, and contour diameter
Example Part #: ABWM-4T-45-COD-1.25IN
