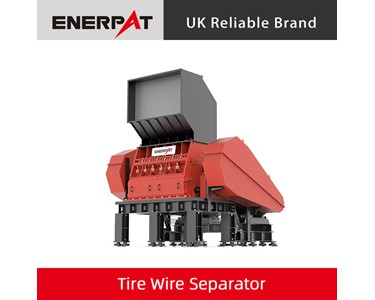

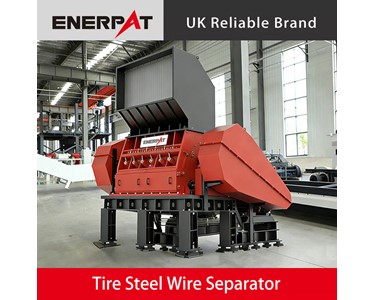

Enerpat Tire Steel Wire Separator

Enerpat - Tire Steel Wire Separator

Supplier: Enerpat Group

Tire Steel Wire Separator

The Tire Steel Wire Separator is a highly efficient system engineered to extract embedded steel wire from tyre chips and rubber scrap, enhancing purity and recycling output.

Achieves up to 99% steel wire recovery and rubber purity in tyre recycling.

Key Features

Engineered for the mid-stage of tyre recycling to deliver high-purity rubber and recoverable steel.
Integrates grinding, screening, and magnetic separation for stable, high-throughput operation.
Reduces maintenance costs and protects downstream equipment by preventing excessive wear.
Flexible design accommodates both small facilities and industrial-scale recycling lines.

Technical Specifications

Main Power	110 + 110 kW
Rotor Length	1600 mm
Rotor Diameter	660 mm
Spindle Speed	125 rpm
Blade Dimensions	250 × 40 × 145 mm
Spindle Type	Hexagonal Shaft
Equipment Dimensions	3460 × 3760 × 4400 mm
Weight	28 t
Throughput Capacity	Up to 5 tonnes per hour
Steel Wire Recovery Rate	98–99%
Steel Separation Purity	98–99%
Application Stage	Mid-processing / steel liberation

Construction & Operation

Welded Steel Housing: Robust and abrasion-resistant, with a hydraulic hinged opening for quick, safe maintenance.
Forged Alloy Steel Cutting System: High-hardness, wear-resistant rollers, minimising vibration and prolonging service life.
Siemens Motor & Belt Drive: Efficient power transmission, optimised speed control, and reduced noise.
Precision Modular Screening: Detachable, impact-resistant screens for easy replacement and consistently sized material.
Intelligent PLC Control: Automated and adaptive operation through a user-friendly touchscreen interface, with remote diagnostics and safety protocols.

Applications

Waste tyre recycling plants
Rubber granule and crumb production
Pre-treatment for fine rubber powder
Resource recovery and environmental protection projects
Large-scale integrated tyre recycling lines

To contact Enerpat Group about Enerpat Tire Steel Wire Separator use Get a quote.

Key Features

Engineered for the mid-stage of tyre recycling to deliver high-purity rubber and recoverable steel.
Integrates grinding, screening, and magnetic separation for stable, high-throughput operation.
Reduces maintenance costs and protects downstream equipment by preventing excessive wear.
Flexible design accommodates both small facilities and industrial-scale recycling lines.

Technical Specifications

Main Power	110 + 110 kW
Rotor Length	1600 mm
Rotor Diameter	660 mm
Spindle Speed	125 rpm
Blade Dimensions	250 × 40 × 145 mm
Spindle Type	Hexagonal Shaft
Equipment Dimensions	3460 × 3760 × 4400 mm
Weight	28 t
Throughput Capacity	Up to 5 tonnes per hour
Steel Wire Recovery Rate	98–99%
Steel Separation Purity	98–99%
Application Stage	Mid-processing / steel liberation

Construction & Operation

Welded Steel Housing: Robust and abrasion-resistant, with a hydraulic hinged opening for quick, safe maintenance.
Forged Alloy Steel Cutting System: High-hardness, wear-resistant rollers, minimising vibration and prolonging service life.
Siemens Motor & Belt Drive: Efficient power transmission, optimised speed control, and reduced noise.
Precision Modular Screening: Detachable, impact-resistant screens for easy replacement and consistently sized material.
Intelligent PLC Control: Automated and adaptive operation through a user-friendly touchscreen interface, with remote diagnostics and safety protocols.

Applications

Waste tyre recycling plants
Rubber granule and crumb production
Pre-treatment for fine rubber powder
Resource recovery and environmental protection projects
Large-scale integrated tyre recycling lines

Read less...

To contact Enerpat Group about Enerpat Tire Steel Wire Separator use Get a quote.
