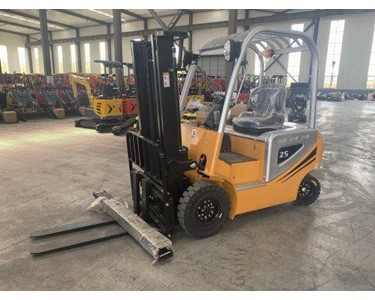

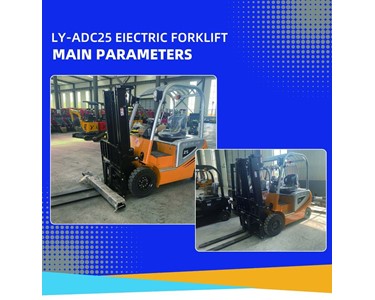

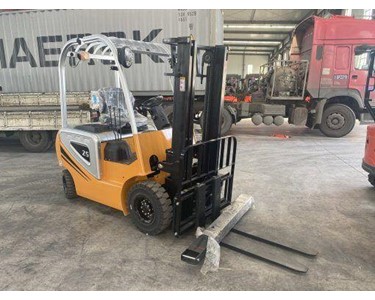

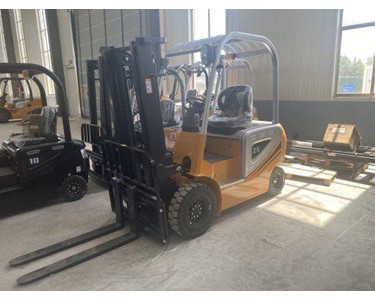

Electric Forklift 2.5T | LY-ADC25 Price Guide: $23,980 Get latest price

Read more...

To contact Conon Motor about Electric Forklift 2.5T | LY-ADC25 use Get a quote.

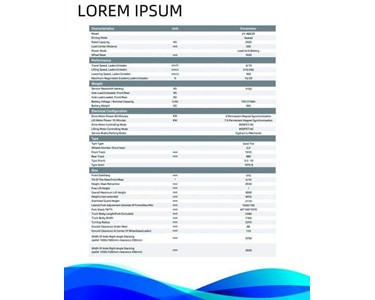

Specifications:

• Model: LY-ADC25
• Rated Capacity:2500KG
• Load Center Distance :50MM
• Power Mode:Lead-Acid Battery
• Wheel Base:1600MM
• Travel Speed, Laden/Unladen: 9/10km/h
• Lifting Speed, Laden/Unladen: 210/250mm/s
• Lowering Speed, Laden/Unladen: 450mm/s
• Maximum Negoniable Gradient,Laden/Unladen: 15/20%
• Service Mass(with battery): 3150KG
• Battery Voltage / Nominal Capacity: 72V/210Ah
• Battery Weiaht: 360
• Drive Motor Power-60 Minutes(KW): 9 Permanent Magnet Synchronization
• Lift Motor Power-15 Minutes(KW):7.5 Permanent Magnet Synchronization
• Drive Motor Controlling Mode: MOSFET/AC
• Lifting Motor Controlling Mode:MOSFET/AC
• Service Brake/Parking Brake:Hydraul ic/Mechanial
• Tyre Type:Solid Tire
• Wheels Number (front/rear): 2/2
• Front Track: 1010MM
• Rear Track: 880MM
• Tyre (front): 6.5 -10
• Tyre (rear): 16*6-8
• Front Overhang: 410MM
• Tilt Of The Mast,Front/Rear(°): 5/10
• Height, Mast Retraction: 2030MM
• Overall Maximum Lift Height: 3000MM
• Height,mast extended: 4055MM
• Overhead Guard Height: 2110MM
• Lateral Fork Adjustment (Outside Of Forks)Max/Min: 1040/100MM
• Fork Size(L*W*T): 40*100*1070
• Truck Body Length(Fork Excluded): 2390MM
• Truck Body Width: 1160MM
• Turning Radius: 2370MM
• Groubd Clearance Under Mast: 88MM
• Ground Clearance At Center Of Wheelbase(Laden): 110MM
• Width Of Aisle Right-Angle Stacking(pallet 1000x1000mm clearance 200mm): 3750MM
• Width Of Aisle Right-Angle Stacking(pallet 1200x1200mm clearance 200mm): 3950MM
• Level 2 3m mast, permanent magnet synchronous motor, battery 72V210Ah (12 pieces), hydraulic steering, solid tires,
• Intelligent charger, fork length 1070mm, cast iron counterweight,Domestic side shifter, suspension seat, rear headlights, double rearview mirrors, warning lights, increase fork tooth sleeve 1500mm,220V charger + US standard plug
