Hydromech is the national distributor for Nante Cranes, and together they've been working hard to ensure there is a product available off the shelf to suit Australian market requirements.
With 50 years of actually manufacturing hoists (As in Design, procurement, fabrication, assembly, testing - all done right here in South Dandenong) Hydromech is one of the few companies in Australia that has the knowledge to bring in a product and know whether it stacks up.
This means we've done the hard work, made sure you and your staff, operations and finances are secure.
The NHA series comes in 2 and 4 fall models, so if you need that extra height of lift or to speed up your production, we've got you covered.
Currently in stock and ready to ship 3.2T, 5T, 6.3T, 10T 4 fall hoists, and if you need them converted we can provide 1.6T, 3.2T, 5T 2 fall options.
All come with SEW Hoisting and Travel Drives, inverter controlled cross travel, schnieder switch gear, and the parts come with a 12month warranty.
See technical detail below:
Brand: Nante
Model: NHA5t-9m-4/1-M5
Rated Capacity: 5.0T
Class: M5
Hoist Speed: 4.8/0.8 m/min
Hoist Motor: SEW G77 6.1/0.9kW
Duty: 30/15%
Load Limiter: Yes.
HOL: 9.0 metres available
Reeving: 4/1
Flange: 200-350mm Max
Trolley Speed: 20/5 m/min (RF17-0.37, 0.64kW) Inverter Control

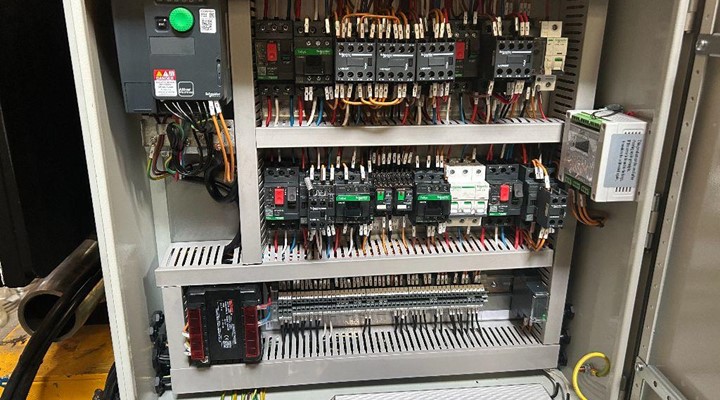

Control Electrics: Yes.
Control: By client.
CT Limit: Yes.
Environment: Indoors - Non Aggressive
Supply Voltage: 415V AC 3Ph 50Hz
Control Voltage: 48V AC
Protection/Class: IP55 / F
