Agricultural Mulcher 120hp gearbox | Agila High Body Mulcher Series

Supplier: Inlon

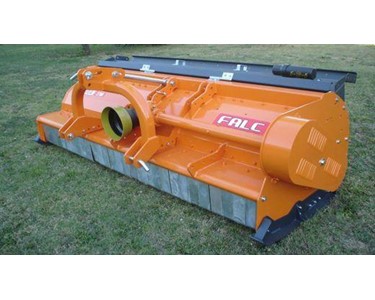

Tough and versatile, the Falc Agila, with its 120hp gearbox, high clearance body and large material intake, will comfortably handle pasture topping or the mulching of vegetables, potatoes,orchard and vineyard prunings as well as cover crops.

Video for Agricultural Mulcher 120hp gearbox | Agila High Body Mulcher Series

Receive 1-3 days from order

Available in working widths from 1.6m to 3m, and with a choice of skids, rear roller or dual wheel height control.

FEATURES OF THE AGILA MULCHER & SHREDDER

CONSTRUCTION

High profile design with 5mm body plate, 2.5mm replaceable wear and tear sheet and 8mm side plates.
Strong, fabricated headstock.
High clearance material intake.
Dual position, 3pt linkage clevis mounting with Category 2 pins.
Offsetting:
- 1600 to 1800 can be offset 300mm to the RHS.
- 2100 to 3000 can be offset 425mm to the RHS.
Adjustable tie rod for headstock support.

TRANSMISSION

540 rpm PTO.
Gearboxes:
- 100hp gearbox fitted to the1600, 1800 & 2100 models.
- 120hp gearbox fitted to the 2300, 2500, 2700 & 3000 models.
Internal free-wheeling clutch fitted to both gearboxes.
Drive shaft with 1 3/8” 6 spline yoke.
‘V’ belt side drive: 3 x belts on 1600-1800 & 4 x belts on 2100-3000.

ROTOR AND FLAILS

Rotor Tube:
- Ø159mm with 10mm wall thickness on 1600 to 2100.
- Ø193.7mm with 10mm wall thickness on 2300 to 3000.
Rotor Speeds:
- 2132 rpm on 1600-2500.
- 1910 rpm on 2700-3000.
Hammer Tip Speeds:
- 64m/sec on the 1600-2100 models.
- 68m/sec on the 2300-2500 models.
- 61m/sec on the 2700-3000 models.
‘Y’ flails & smooth comb counter-blade. (Hammer or Spatula flails are optional).

SAFETY

Complies with all CE (European) safety standards.
Adjustableand removable rear doors for control of material ejection and for ease of maintenance.
Steel front safety flaps across the full intake width.
Fully guarded ‘Vee’ belts, drive shaft and clutch.

HEIGHT CONTROL

Standard fitment:
- Dual adjustable skids on 1600-1800,
- Dual fixed skids & rear roller (193.7mm x 5mm) on 2100-2500,
- Dual fixed skids &dual pneumatic wheels on 2700-3000.

SPECIFICATIONS	AGILA 1600	AGILA 1800	AGILA 2100	AGILA 2300	AGILA 2500	AGILA 2700	AGILA 3000
Working Width (m)	1.58	1.76	2.12	2.31	2.49	2.67	3.00
Overall Width (m)	1.82	2.00	2.36	2.55	273	2.91	3.24
No. of Flails	32	36	44	48	52	56	84
Weight (kg)	660	706	750	910	965	1020	1080
Tractor Power (hp)	50-100	55-100	60-100	70-120	75-120	80-120	100-130

To contact Inlon about Agricultural Mulcher 120hp gearbox | Agila High Body Mulcher Series use Get a quote.

Available in working widths from 1.6m to 3m, and with a choice of skids, rear roller or dual wheel height control.

FEATURES OF THE AGILA MULCHER & SHREDDER

CONSTRUCTION

High profile design with 5mm body plate, 2.5mm replaceable wear and tear sheet and 8mm side plates.
Strong, fabricated headstock.
High clearance material intake.
Dual position, 3pt linkage clevis mounting with Category 2 pins.
Offsetting:
- 1600 to 1800 can be offset 300mm to the RHS.
- 2100 to 3000 can be offset 425mm to the RHS.
Adjustable tie rod for headstock support.

TRANSMISSION

540 rpm PTO.
Gearboxes:
- 100hp gearbox fitted to the1600, 1800 & 2100 models.
- 120hp gearbox fitted to the 2300, 2500, 2700 & 3000 models.
Internal free-wheeling clutch fitted to both gearboxes.
Drive shaft with 1 3/8” 6 spline yoke.
‘V’ belt side drive: 3 x belts on 1600-1800 & 4 x belts on 2100-3000.

ROTOR AND FLAILS

Rotor Tube:
- Ø159mm with 10mm wall thickness on 1600 to 2100.
- Ø193.7mm with 10mm wall thickness on 2300 to 3000.
Rotor Speeds:
- 2132 rpm on 1600-2500.
- 1910 rpm on 2700-3000.
Hammer Tip Speeds:
- 64m/sec on the 1600-2100 models.
- 68m/sec on the 2300-2500 models.
- 61m/sec on the 2700-3000 models.
‘Y’ flails & smooth comb counter-blade. (Hammer or Spatula flails are optional).

SAFETY

Complies with all CE (European) safety standards.
Adjustableand removable rear doors for control of material ejection and for ease of maintenance.
Steel front safety flaps across the full intake width.
Fully guarded ‘Vee’ belts, drive shaft and clutch.

HEIGHT CONTROL

Standard fitment:
- Dual adjustable skids on 1600-1800,
- Dual fixed skids & rear roller (193.7mm x 5mm) on 2100-2500,
- Dual fixed skids &dual pneumatic wheels on 2700-3000.

SPECIFICATIONS	AGILA 1600	AGILA 1800	AGILA 2100	AGILA 2300	AGILA 2500	AGILA 2700	AGILA 3000
Working Width (m)	1.58	1.76	2.12	2.31	2.49	2.67	3.00
Overall Width (m)	1.82	2.00	2.36	2.55	273	2.91	3.24
No. of Flails	32	36	44	48	52	56	84
Weight (kg)	660	706	750	910	965	1020	1080
Tractor Power (hp)	50-100	55-100	60-100	70-120	75-120	80-120	100-130
