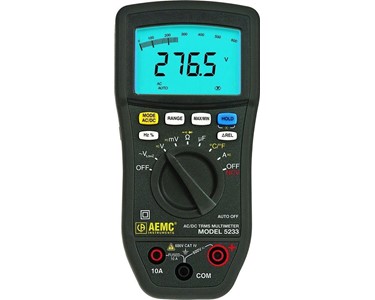

AEMC - Low Impedance Multimeter with Temperature | TRMS Digital CAT IV 5233 Get latest price

Read more...

To contact Testrix about AEMC Low Impedance Multimeter with Temperature | TRMS Digital CAT IV 5233 use Get a quote.

This multimeter is designed for safety: IEC61010, 600V CAT IV. The Multimeter Model 5233 provides a Volt, Ohm, Continuity, Diode, Capacitance, Frequency, Duty Cycle and Ammeter function, as well as an AC voltmeter with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It can measure up to 10 Amps directly and can measure temperature in both °C or °F using K-type thermocouples.

The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.

The Model 5233 is ideal for electrical installers, electricians and heating or air-conditioning specialists.

Features:

• Non-electrical contact detection of network voltage (NCV Function)
• High sensitivity with a resolution of 0.01mV
• AC voltmeter with low input impedance (voltage measurements for electricity and electrical engineering)
• AC/DC voltmeter with high input impedance (voltage measurements for electronics)
• Ohmmeter, Continuity test with buzzer, Diode test and Capacitance functions
• Frequency and Duty Cycle measurements
• Withstands overloads up to 8000V
• LoZ function detects the presence of ghost voltage by placing a burden on the circuit
• Multi-position mounting for a hands-free work environment
• IEC/EN 61010-1, 1000V CAT III, 600V CAT IV

Applications:

• General purpose testing
• Detect loose electrical wiring
• Detect live circuits
• Temperature checking
