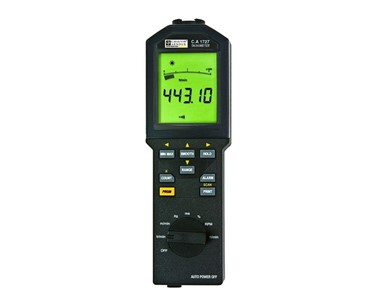

AEMC - Digital Infrared Tachometer with USB Interface & Software | CA1727 Get latest price

Read more...

To contact Testrix about AEMC Digital Infrared Tachometer with USB Interface & Software | CA1727 use Get a quote.

Measurement by photo-reflection for no-contact measurement: a reflective strip is positioned on the part to be tested. The optical sensor helps to prevent external disturbances and the active, modulated infrared beam guarantees correct measurements.

For traditional measurement with contact, an optional mechanical adapter (cylinder, cone or calibrated wheel) converts the rotation speed into pulses which are then measured by the tachometer. The CA1727 ensures up to 100,000 RPM using infrared measurement. A combination digital/analog bar graph LCD displays the measurement clearly and accurately. Other features include auto or manual range selection, smoothing, min/max recording and hold functions. Count, alarm and print functions are also provided. An accessory kit of three mechanical adapters for the AEMC CA-1727 allows for direct connection and measurement to rotating shafts and other devices. High and Low alarm levels are programmable as well as display multiplier coefficient "K" (scale factor).

The CA1727 adds PC connectivity to the specification of the CA1725 and is supplied with TachoGraph software

Features:

• Measurements up to 100,000 rpm
• Multiple of functions and automatic routines for data acquisition and storage: measurement of rotational speed, linear speed, count, frequency and period
• Extensive programming possibilities
• Digital display with analog bargraph
• USB interface for analysing and processing results on a PC
• Includes TachoGrapg software on CD

Applications:

• Laboratory and scientific measurements
• Motor rotational speed and RPM
• Conveyor systems
• Industrial applications
• Automotive applications
• Precision environments

Should you require a mechanical accessory kit at an additional cost, please advise at the time of placing your order.
