10kV Programmable Insulation Resistance Tester | 6550

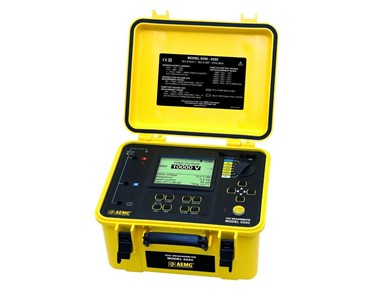

The AEMC Megohmmeter Model 6550 is a high-end portable measuring instrument intended for the measurement of a wide varity of electrical insulation resistance values on cables and devices operating at high voltage.

Receive 1-3 days from order

It is the only fully automated 10,000V graphical insulation tester. The Model 6550 is packaged in a rugged case that is IP54 when closed. Test results and configuration information is provided on a graphical LCD screen as well as exportable through the use of DataView® software provided. This megohmmeter can operate on battery or AC power while testing.

The Model 6550 also offers the ability to program up to three step voltage profiles (from 40 to 10,000), each containing up to ten steps. There are also ramp profiles and three programmable test voltages in addition to the standard fixed voltages of 500, 1000, 2500, 5000 and 10,000V.

Features:

Detection and measurement of input voltage, frequency, and current prior to running a test
Measurements at a fixed test voltage of 500, 1000, 2500, 5000, 10,000VDC
Ramp voltage measurements with a ramp from 40 to 1100V
Step voltage measurements with steps from 40 to 10,000V
Non-destructive (Early break) test, test stopped at a preset current (Break at I-limit) or Burn mode with no predefined stop point
Digital filtering of insulation measurements
Live measurement of the voltage to warn the operator of potential unsafe conditions
Programmable thresholds to trigger audible
Timed measurement duration checks
Fuse protection with display indication of defective fuse condition
Stores up to 80,000 measurements
Optically-isolated USB communication for transfer onto PC and and report generation with the included DataView® software

Applications:

Acceptance testing and preventive maintenance
Test motors, pumps, valves, cables, switchgears and electrical wiring installations
Continuity checks
High resistance or absorption tests
Spot reading tests
Timed resistance measurements
Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests
Multi-layer insulation testing (DD)
Test old or water damaged installations over long time periods
Motor insulation resistance measurements
