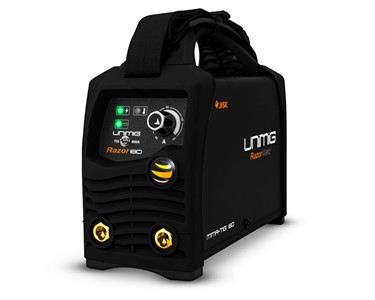

The Razor ARC 180 is a professional-grade Stick and TIG welder engineered for portability without sacrificing power. With a 240V input and 180A output, it offers excellent performance for mild steel, stainless, and cast iron. The unit features DC Lift Arc TIG capability with a 17V TIG torch, making it a flexible option for welding in confined or mobile workspaces. Weighing only 4.7kg, it includes keyable VRD, thermal overload protection, and a high open-circuit voltage for easy arc starts. Perfect for job sites, maintenance work, and field repairs.

MACHINE SPECIFICATIONS

• PRIMARY INPUT VOLTAGE – 240V Single Phase
• SUPPLY PLUG – 15 AMP
• RATED INPUT POWER (kVA) – 7.2
• Ieff (A) – 14.0
• RATED OUTPUT – 10-180A
• NO LOAD VOLTAGE (V) – 78
• PROTECTION CLASS – IP21S
• INSULATION CLASS – F
• POWER FACTOR – 0.7
• MINIMUM GENERATOR (kVA) – 10.0
• DINSE CONNECTOR- 35/50
• STANDARD – AS/NZ60974-1
• SUITABLE MATERIAL – Mild Steel, Stainless Steel, Copper, Cast Iron
• WARRANTY (Years) – 3

TIG SPECIFICATIONS

• TIG FUNCTION TYPE- DC Lift Arc
• TIG WELDING CURRENT RANGE – 10-180A
• TIG DUTY CYCLE @ 40°C – 20% @ 180A
• TIG WELDING THICKNESS RANGE – 1-6mm

STICK SPECIFICATIONS

• STICK WELDING CURRENT RANGE- 10-180A
• STICK DUTY CYCLE @ 40°C – 20% @ 180A
• STICK ELECTRODE RANGE – 2.5-3.2mm
• STICK WELDING THICKNESS RANGE-  2-12mm

SIZE & WEIGHT

• DIMENSIONS (mm) – 313x250x130mm
• WEIGHT (kg) – 4.7kg
• MACHINE FEATURES
• VRD – Yes (Keyable)
• THERMAL OVERLOAD PROTECTION – Over Temperature Warning
