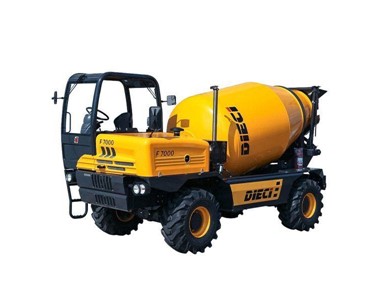

Self Loading Concrete Mixer 93 kW | F7000 T Get latest price

Read more...

To contact Dieci Australia about Self Loading Concrete Mixer 93 kW | F7000 T use Get a quote.

This model does not include the self loading shovel, however, is equipped with a self-locking rear axle, servo- controlled 2 speed gearbox, hydrostatic transmission, 4 driving and steering wheels with braking on all, oil-bath disc brakes, discharge chute adjustable in height and with 180° rotation.

Specifications:

Max Capacity: 5 m³

Total Weight: 7,400 kg

Max Power: 93 kW (125 hp)

Engine Brand: FPT

Technical Specifications:

Dimensions

• Length: 6,100 mm
• Width: 2,370 mm
• Height: 3,050 mm

Performance

• Concrete yield: 5.0 m3
• Maximum speed: 27 km/h
• Water tank capacity: 850 l

Mass

• Unladen weight: 7,400 kg

Engine

• Brand: FPT
• Fuelling: Diesel
• Displacement: 4,485 cm³
• Nominal power: 93 kW (125 hp)
• RPM at nominal power: 2,200 rpm
• Emission standard: Stage IIIA/Tier 3

Transmission

• Transmission type: Hydrostatic with variable displacement pump

Tyres

• Standard tyres: 405/70×24″
