Haco Haco GSX Hydraulic Guillotine | GSX3006 ...

Haco - Haco GSX Hydraulic Guillotine | GSX3006 Price Guide: $102,245

Supplier: HACO Australia

Haco GSX Hydraulic Guillotine | GSX3006

1/6

Hydraulic Guillotine | GSX3006

Receive 3-7 days from order

The hydraulic guillotine shears of the GSX range are driven by top mounted cylinders. Our long experience in the production of hydraulic guillotine shears guarantees a product of exceptional design and great efficiency. The fully open rear side provides the operator the possibility of easy removal or adapting different conveying systems to the machine. The all-welded interlocked construction makes the machine virtually indestructible. The GSX shears are well equipped and have as standard the SC200T controller.

Intuitive control

The SC200T fits all requirements for sheet cutting operations that require the highest accuracy and minimum time-loss. Creating a program requires only a few actions. The program parameters include: back gauge position, cutting time, sheet thickness, blade angle & blade gap setting. The blade gap adjustment is done electro hydraulically.

Optional equipment

Hydraulic sheet support system
Sheet Back to Sender functionality (SBS).

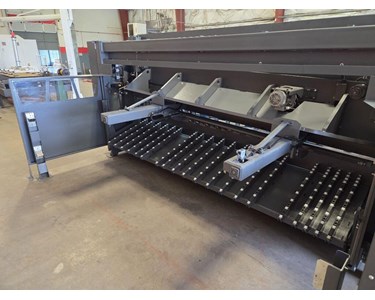

SAB (= 'Swing-Away Backgauge')
Optical finger protection
Hand Safety Guard with safety light curtain
Full table consisting of segments, with ball transfers for easy feed-in of the sheets

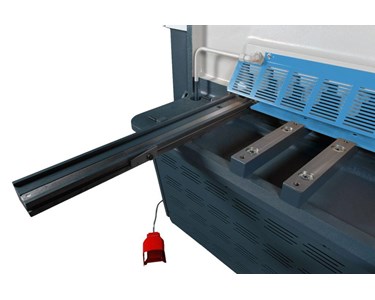

Squaring arms and front support arms with or without scale, T-slot ,and tilling stop. Lengths from 1000 to 3000 mm per multiple length of 500 mm
Pendant control arm
Protractor for angle shearing

To contact HACO Australia about Haco Haco GSX Hydraulic Guillotine | GSX3006 use Get a quote.

Intuitive control

Optional equipment

Hydraulic sheet support system
Sheet Back to Sender functionality (SBS).
SAB (= 'Swing-Away Backgauge')
Optical finger protection
Hand Safety Guard with safety light curtain
Full table consisting of segments, with ball transfers for easy feed-in of the sheets
Squaring arms and front support arms with or without scale, T-slot ,and tilling stop. Lengths from 1000 to 3000 mm per multiple length of 500 mm
Pendant control arm
Protractor for angle shearing

Read less...

To contact HACO Australia about Haco Haco GSX Hydraulic Guillotine | GSX3006 use Get a quote.

GSX Brochure SC101T(4.15MB)
