Aardwolf Forklift Boom | FB2LP-3600, 2 ...

Aardwolf - Forklift Boom | FB2LP-3600, 2 stage telescopic jib. Price Guide: $1,936

Supplier: Tool Range

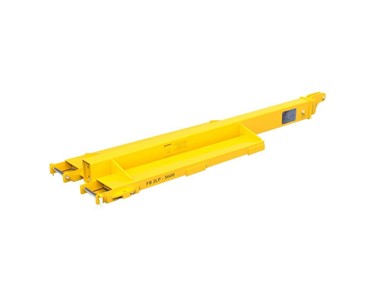

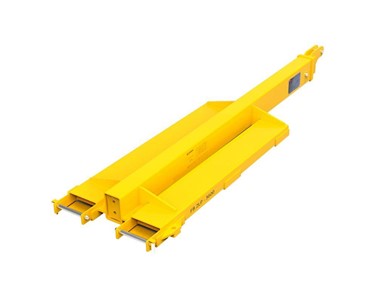

Forklift Boom | FB2LP-3600, 2 stage telescopic jib.

The Forklift Boom FB2LP-3600 has a low profile design specifically intended for unloading marble and granite sheets from closed van containers where height is a critical factor.

84 Recent Views

Aardwolf Forklift Boom | FB2LP-3600

The FB2LP-3600 is a telescoping two-section rectangular tube steel boom built to comply with current safety guidelines and manufactured from heavy gauge Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability and safety.

Features:

The boom extension is designed so that it cannot be pulled all the way out
The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
Durable powder-coat finish

Specifications:

	Metric (mm-kg)	Imperial (inch-lb)

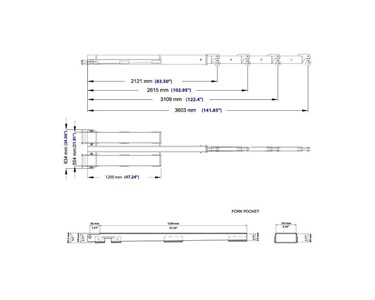

Manual telescope	2121 - 3603	84.5'' - 141.9''
Increment	494	19.4''
Slip onto fork designed with fork pocket	165x65	6.5''x2.6''
Fork pocket from centre to centre	377	14.8''

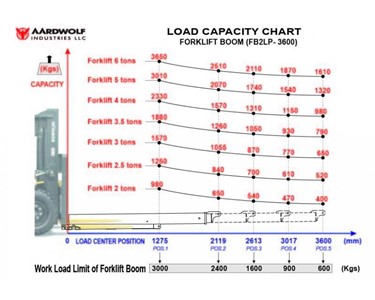

Working load limit	Retracted: 2400 Extended: 600	5291 1323
Net weight	134	295
Gross weight	144	318
Packaging dimension	2280x640x370	89.8''x25''x14.6''

Note: Three alternatives for attaching the Aardwolf Lifters to the forklift boom.

Combo Swivel, Chain, Lifting Lug. Allows flex between the boom and the load. Prevents slab breakage when traversing rough terrain. Also allows the lifter to be lowered down into confined spaces such as when lifting a short slab from a racking system.
Forged Aluminium Swivel Shackle. A compact swivel shackle that attaches directly to the forklift boom and Aardwolf lifting clamp. Gives operators maximum lift within a shipping container.
Bow Shackle 3.0 T. General purpose. Useful in many applications for safe and secure attachments.

Boom lift capacities depend completely on the capacity of the forklift being used.

To contact Tool Range about Aardwolf Forklift Boom | FB2LP-3600, 2 stage telescopic jib. use Get a quote.

Aardwolf Forklift Boom | FB2LP-3600

Features:

The boom extension is designed so that it cannot be pulled all the way out
The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
Durable powder-coat finish

Specifications:

	Metric (mm-kg)	Imperial (inch-lb)
Manual telescope	2121 - 3603	84.5'' - 141.9''
Increment	494	19.4''
Slip onto fork designed with fork pocket	165x65	6.5''x2.6''
Fork pocket from centre to centre	377	14.8''
Working load limit	Retracted: 2400 Extended: 600	5291 1323
Net weight	134	295
Gross weight	144	318
Packaging dimension	2280x640x370	89.8''x25''x14.6''

Note: Three alternatives for attaching the Aardwolf Lifters to the forklift boom.

Combo Swivel, Chain, Lifting Lug. Allows flex between the boom and the load. Prevents slab breakage when traversing rough terrain. Also allows the lifter to be lowered down into confined spaces such as when lifting a short slab from a racking system.
Forged Aluminium Swivel Shackle. A compact swivel shackle that attaches directly to the forklift boom and Aardwolf lifting clamp. Gives operators maximum lift within a shipping container.
Bow Shackle 3.0 T. General purpose. Useful in many applications for safe and secure attachments.

Boom lift capacities depend completely on the capacity of the forklift being used.
